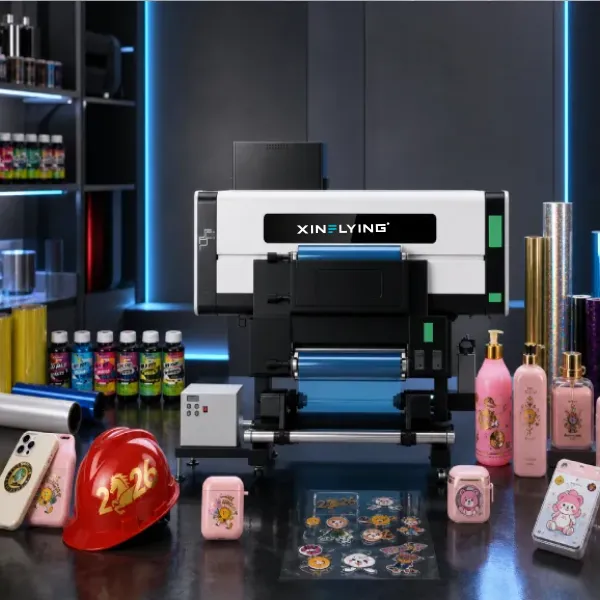

Xinflying UV Printer Machine-600ST
Technical Specifications:
Professional Features

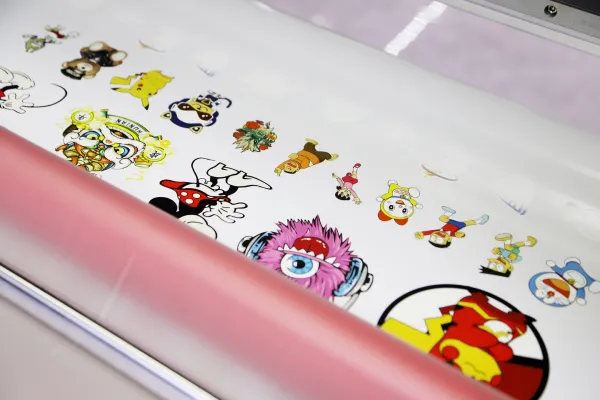

Printing Platform
The 600ST features a stable vacuum-suction print platform that holds film and foil materials firmly in place during printing, preventing shifting or lifting mid-print. This ensures accurate registration and consistent, crisp results across the full 24" printing width.

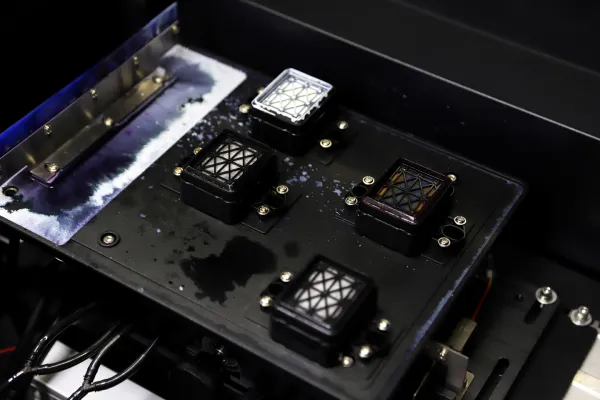

Epson Printheads
Equipped with 4 Epson i3200-U1 printheads, the 600ST delivers sharp, high-resolution printing at industrial speed — up to 5.5 m²/h at 6-pass. This multi-head configuration ensures accurate ink placement and fine detail reproduction, supporting both large-format UV DTF transfers and intricate UV foil stamping designs.

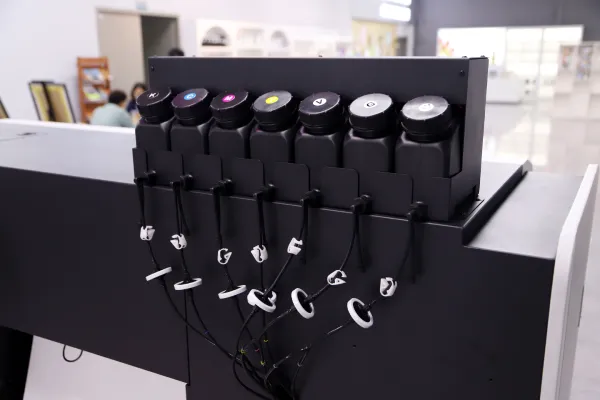

Ink Cartridge
The 600ST uses a large-capacity ink cartridge system with built-in stirring and low-ink alerts, ensuring stable, uninterrupted supply during long production runs. Independent color channels prevent cross-contamination, delivering consistent, vivid results across every batch.
Emergence Button
A clearly marked emergency stop button allows operators to immediately halt the machine in the event of a malfunction or safety concern. This quick-access safety feature provides peace of mind during high-speed, continuous UV DTF and UV foil stamping production, protecting both equipment and operators.
Foil Stamping Effect—UV Printer Machine-600ST
Technical Specifications
| Model | 600ST |
| Print Heads | 4pcs Epson i3200-U1 |
| Print Width | 24”(60CM) |
| Fastest Print Speed | 6PASS:8㎡/h |
| Standard Print Speed | 6PASS:5.5㎡/h |
| DPI | 720*1800 |
| Temperature/Humidity | 20-30℃/45-65%RH |
| Media Transmission | Media feeding system |
| Ink Types | UV ink |
| Printing Color | W+CMYK+V+Foil Vanish |
| RIP Software | Standard with RIIN or Printfactory ; For Option: Maintop, PhotoPrint |
| Power | 4KW |
| Power Supply/Voltage | 220V, 11.3A, 50HZ |
| Machine Size | L1850*W990*H1610mm |
| Packaging Size | L2140*W1160*H1630mm |
| Net Weight | 400KG |
| Gross Weight | 465KG |
