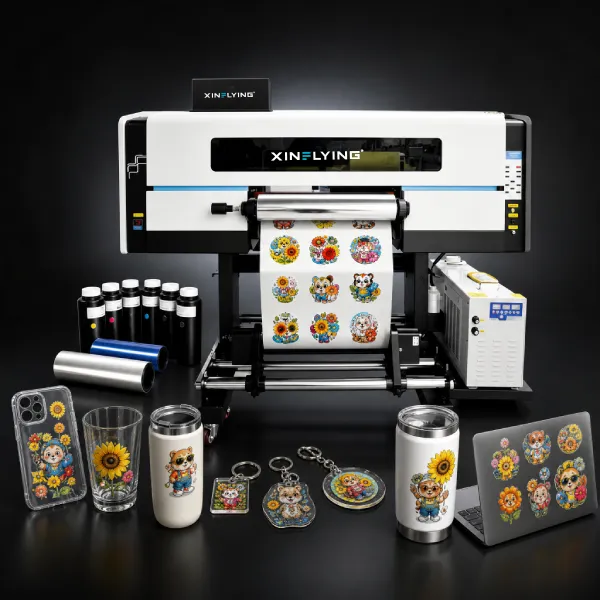

Xinflying UV Printer Machine-600
Technical Specifications:
Professional Features

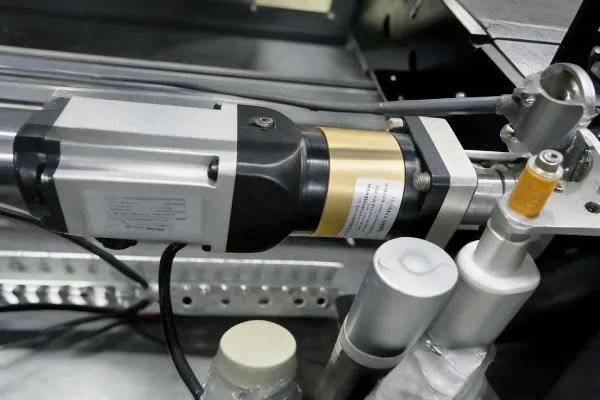

High-Precision Y-Axis Motor
A dedicated Y-axis servo motor drives consistent head movement across every pass, minimizing vibration and mechanical drift. This keeps print registration accurate even during long, high-speed production runs — so fine detail and color alignment stay sharp from the first print to the thousandth.

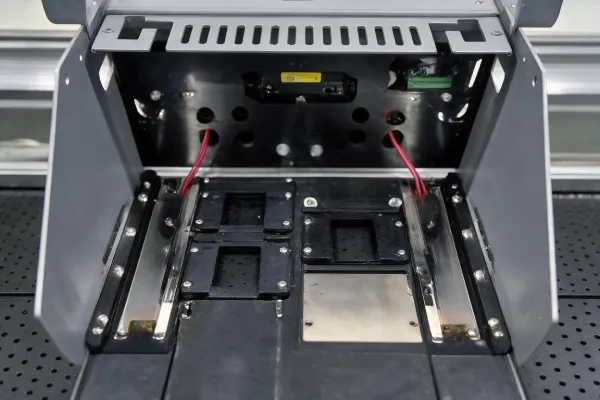

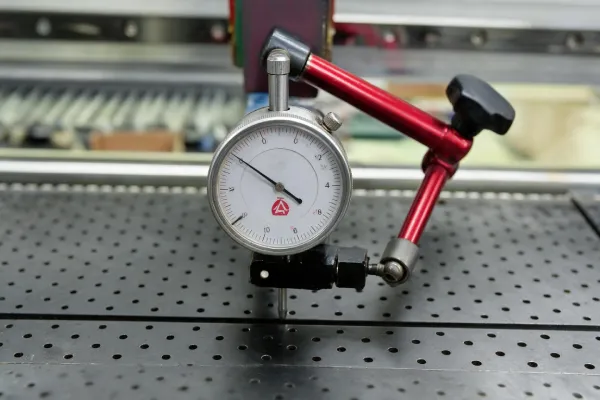

Precision Carriage (Small Car) Module
The compact carriage module houses the printhead assembly and moves along a reinforced rail system for stable, repeatable travel. Its tight tolerance design reduces banding and misalignment, ensuring every pass lands exactly where the last one left off.
High-Precision Oxidation Suction Platform
An anodized, high-precision suction platform holds film and substrates flat and secure during printing, eliminating shifting or lifting mid-print. The oxidized surface resists wear over time, maintaining consistent flatness and suction performance even after heavy daily use.
Convenient Ink Control Panel
The front-mounted ink control panel provides easy access to ink channels and maintenance functions, making the UV DTF Printer simple to operate while improving printing efficiency and reducing maintenance time.
Watch This UV DTF Printer Make Custom Stickers for Cases, Mugs
Technical Specifications
| Model | 600-3I32U1 |
| Print Heads | 3pcs i3200-U1 |
| Print Width | 24”(60CM) |
| Printing Accuracy | Minimum ink drop 3.8pl |
| Fastest Print Speed | 6PASS:8㎡/h ; 8PASS:6.16㎡/h |
| Standard Print Speed | 6PASS:6.28㎡/h ; 8PASS:4.85㎡/h |
| Consumable Thickness | 0-2mm |
| Consumable Size | Width 600mm,Unlimited length |
| Consumable Kind | A+B UV pet film |
| Ink | UV ink |
| Printing Color | CMYK+W+V |
| Dry | UV_LED |
| Operating System | Windows 11(64bit)/Windows 10(64bit) |
| RIP Software | Standard with RIIN ; For Option: Maintop,PP |
| Temperature/Humidity | 24°C-28°C;40%-60% |
| Power | 3KW |
| Machine Size | L2000*W820*H1600mm |
| Packing Size | L2150*W1020*H1640mm |
| Net Weight | 275KG |
| Gross Weight | 330KG |
Xinflying UV DTF Sticker Printer Applications
